AQUASEAL ®

  • AQUASEAL Zipper
  • AQUASEAL Zipper
  • AQUASEAL Zipper

This amazing AQUASEAL® zipper from YKK is perfect for active marine sportswear plus lots more!
Combining VISLON® technology with a new innovative seal between the zipper elements, AQUASEAL® allows an smooth and easy operation with perfect protection against the most sever weather conditions and extreme outdoor activities.
AQUASEAL® zippers are made from a high quality plastic which is roughly half the weight of a conventional metal zipper. This makes AQUASEAL® zippers ideal for use in salt water environments.



  • Water performance :
  • Flexibility :
  • Water performance :
    No. 5 - 0.05 bar pressure
    No. 10 - 0.3 bar pressure

    *Airtightness inspection for size 5 is an option.

Availability

Size Chain Type Tape Classification
Closed End Open End Two-Way
5 VFWN PU19B (Polyurethane) Both ends closed
One end closed		 OR
OL		 MR
10 VFWB PU23B (Polyurethane) Both ends closed
One end closed		 OR
OL		 MR, ML
PU31B (Polyurethane) Both ends closed
One end closed		 OR
OL		 not available

*OR = Open, Right hand insertion　*MR = Two-way, right hand insertion
*OL = Open, Left hand insertion　*ML = Two-way, left hand insertion

Classification

Closed-end (One end closed, Single-SEAL)

*With Fit in top stop but Standard top stop also available.

Closed-end (Both end closed, W-SEAL)

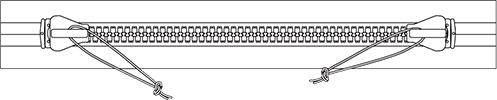

Closed-end(with 2 sliders back to back (SLSB-B), Single-Seal)

Closed-end (with 2 sliders back to back (SLSB-B), W-Seal)

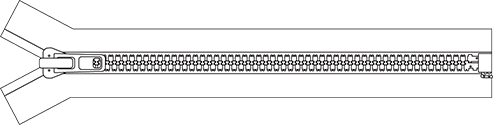

Open-end

*With Standard top stop but Fit in top stop also available.

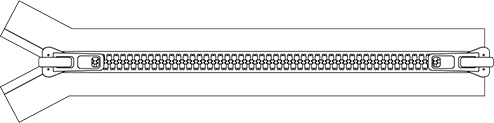

Two-way Separator

*With Standard top stop but Fit in top stop also available.

Parts variation

Slider

Size Standard Variation
5

NAZ (plastic)

NFNT580 P-HIM01
(plastic with cord)

NFTPH
(plastic with D ring)

NA9

NA9LH2
10

NAZ (plastic)

NFNT580 P-HIM01
(plastic with cord)

NF1580TZ
(plastic with T-bar)

SAZH
(Stainless)

Black Stainless Slider

NF1Y410580

NF1Y411580

Top stop

Single-Seal W-Seal
Description Standard Type Fit-in Type Fit-in Type (sealed)
Code - TS-NEWH TS-SEAL

Bottom stop / Open parts

Bottom Stop Open-parts
Standard 2 sliders back to back
Description Standard Type Fit-in Type (sealed) Standard Type
Code - BS-SEAL -

Reinforcement Tape (Optional)

Reinforcement Tape(Width 9mm)Reinforcement Tape(Narrow type,Width 6mm)

for bottom

for bottom

for top

for bottom

for bottom

for top
Description Use with closed end Use with W-seal (both end closed) Use with closed end Use with W-seal (both end closed)
Code B-HOKYO W-HOKYO B-HOKYO1 W-HOKYO1

Material

Size Element Slider Top stop Bottom stop / Open parts Tape
5 Polyamide Polyamide Polyamide /
Polyurethane		 Polyamide Coating : Polyurethane
Base tape : Polyester
10 Polyamide Polyamide / Stainless Polyamide /
Polyurethane		 Polyamide Coating : Polyurethane
Base tape : Polyester

Application

  • Wet-suit
  • Semi-dry suit
  • Dry Bag
  • Fishing Wader
  • Technical apparel (Sailing, motorcycle, etc)
  • Industries

Catalog Download

Acrobat Reader is required in order to view a “PDF” file.

Technical support

Notice

YKK fastener can be used for many fastening needs, however, it is not suitable for walking water balls, or similar items. YKK does not recommend the use of our fasteners on walking water balls or similar items, will not provide warranties for such use, accepts no liability for such use and will avoid selling these fasteners for such use.

Disclaimer

The purchaser/user is solely responsible for testing the AQUASEAL® zippers for suitability in the proposed application. Any proposed use of AQUASEAL® zippers must be fully and appropriately tested by the purchaser/user. For uses in life/limb or other safety critical circumstances, field trails are recommended. YKK disclaims all implied warranties with respected to AQUASEAL® zippers, including without limitation any implied warranties of merchantability and fitness for a particular purpose. In no events shall YKK be liable for any indirect, special, incidental, or consequential damages relating to AQUASEAL® zippers, whether based on breach of express or implied warranty, breach of contract, negligence, strict liability or any other basis.
